A little background here, at work we use Flux this has been set up for quite a while way before ArgoCD was released. So liking new and shiny things, I decided to go with ArgoCD plus I liked the logo much more.

I will run through how I have installed Argo on my K3s cluster. First let's check our requirements

Installation

Requirements

• Installed kubectl command-line tool.
• Have a kubeconfig file (default location is ~/.kube/config).
• CoreDNS

1. Install ArgoCD

kubectl create namespace argocd
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml

This will create a new namespace, argocd, where Argo CD services and application resources will live.

2. Download Argo CD CLI

I found the easiest way to do this was with homebrew, which is available for MacOS & Linux.

brew install argocd

3. Access The Argo CD API Server

By default, the Argo CD API server is not exposed to an external IP. To access the API server, we will go with port forwarding. I want to set it up with ingress but that will be another task at a later date. Kubectl port-forwarding can also be used to connect to the API server without exposing the service.

kubectl port-forward svc/argocd-server -n argocd 8080:443

However, I found this was not persistent. When I closed my terminal session this session to the UI died with it. So in this case I enabled port forwarding via Lens which kept it open. This all should be resolved once I have sorted out the Ingress.

4. Login Using The CLI

The initial password for the admin account is auto-generated and stored as clear text in the field password in a secret named argocd-initial-admin-secret in your Argo CD installation namespace. You can simply retrieve this password using the argocd CLI:

argocd admin initial-password -n argocd

Make sure you change the password in the user settings once the UI has booted up. Now we have ArgoCD up and running.

Apps of Apps setup

With ArgoCD I believe the way most DevOps guys set it up, is to have one repo per project and add those separately. But what happens if you have a mono repo of all your manifests similar to this:

k8s-manifests/
├── namespaces
│   ├── production
│   │   └── namespace.yaml
│   └── staging
│       └── namespace.yaml
├── apps
│   ├── app1
│   │   ├── deployment.yaml
│   │   ├── service.yaml
│   │   └── configmap.yaml
│   └── app2
│       ├── deployment.yaml
│       ├── service.yaml
│       └── ingress.yaml
└── db
    ├── postgres
    │   ├── deployment.yaml
    │   ├── service.yaml
    │   └── pvc.yaml
    └── redis
        ├── deployment.yaml
        └── service.yaml

We have something similar set up at my place of work, where we have one repo full of manifests with each directory being its own namespace. I wanted to try and replicate that within ArgoCD. Here we are going to use the apps of apps pattern. This is where we load one app to control multiple apps.

This all clicked after watching the following video on YT. The App of Apps Pattern for Argo CD in Less than 8 Minutes where Nicholas goes on to explain that Argo CD applications, projects and settings can be defined declaratively using Kubernetes manifests.

ArgoCD watches the clusters in my kubernetes folder (see Directories below) and makes the changes to my clusters based on the state of my Git repository. The way ArgoCD works for me here is it will search through kubernetes/registry.... Then deploy apps using the apps of apps pattern.

📁 kubernetes
├── 📁 apps                        # application directory
│   └── 📁 nginx
│       └── nginx-deployment.yml
├── argo-root.yml
└── 📁 registry                   # registry of applications
    └── nginx.yml

My argo-root.yml argocd application checks for changes in kubernetes/registry for new Application manifests. That application then checks in the apps directory, and then deploys the app like the below:

source:
  repoURL: 'https://github.com/mrpbennett/home-ops.git'
  path: kubernetes/apps/nginx

So lets set this up...

Click the + NEW APP button, and I found the easiest way was to next EDIT AS YAML and paste this in:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: <app name>
  namespace: argocd
  finalizers:
    - resources-finalizer.argocd.argoproj.io
spec:
  project: default
  source:
    repoURL: 'https://github.com/<your repo>.git'
    path: <your path to your apps of apps> # eg: kubernetes/registry
    targetRevision: HEAD
  destination:
    server: 'https://kubernetes.default.svc'
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - Validate=true
      - CreateNamespace=false
    retry:
      limit: 5
      backoff:
        duration: 5s
        maxDuration: 5m0s
        factor: 2

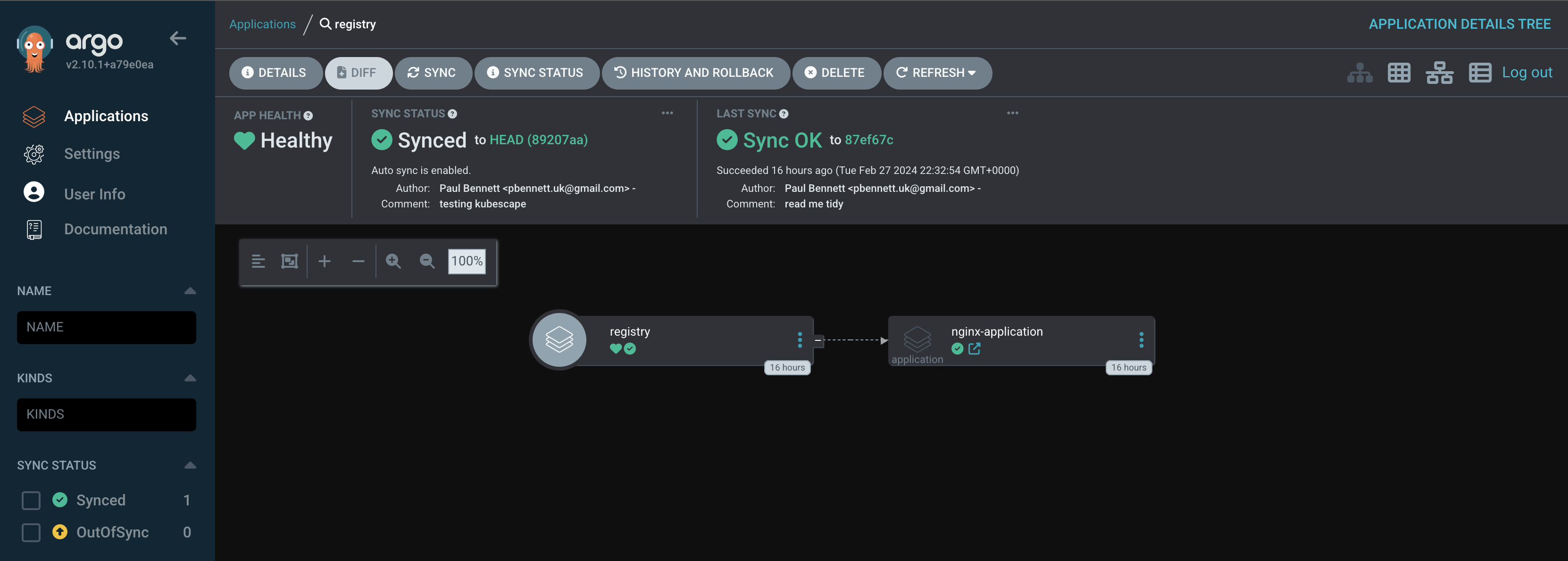

Once the above is deploy you will have a app (in my case) called registry and should look something like this:

What is that nginx-application there though?

This is the first application we have deployed via the apps of apps pattern. Our root application registry looks in the directory kubernetes/registry/... for application deployments.

Each manifest in the registry directory would look similar to this:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: nginx-application
  namespace: argocd
  finalizers:
    - resources-finalizer.argocd.argoproj.io
spec:
  project: default
  source:
    repoURL: 'https://github.com/mrpbennett/home-ops.git'
    path: kubernetes/apps/nginx
    targetRevision: HEAD
    directory:
      recurse: true
  destination:
    namespace: nginx-test
    server: 'https://kubernetes.default.svc'
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true
    retry:
      limit: 5
      backoff:
        duration: 5s
        maxDuration: 5m0s
        factor: 2

With this Application manifest we're telling ArgoCD use recurse so Argo can drill down into the directories within my apps directory. Because by default, directory applications will only include the files from the root of the configured repository/path. I found that tip in this video Introduction to Argo CD : Kubernetes DevOps CI/CD. We're also prune which will remove any dead / unused resources and selfHeal where our application enables automatic sync when the live cluster's state deviates from the state defined in Git.

With the above you can see the Application is looking inside the path: kubernetes/apps/nginx directory. This is where our application manifests are located.

As it's a simple Nginx deployment this is what we have

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80

---
apiVersion: v1
kind: Service
metadata:
  name: nginx-loadbalancer
spec:
  type: LoadBalancer
  ports:
  - port: 80
    targetPort: 80
  selector:
    app: nginx

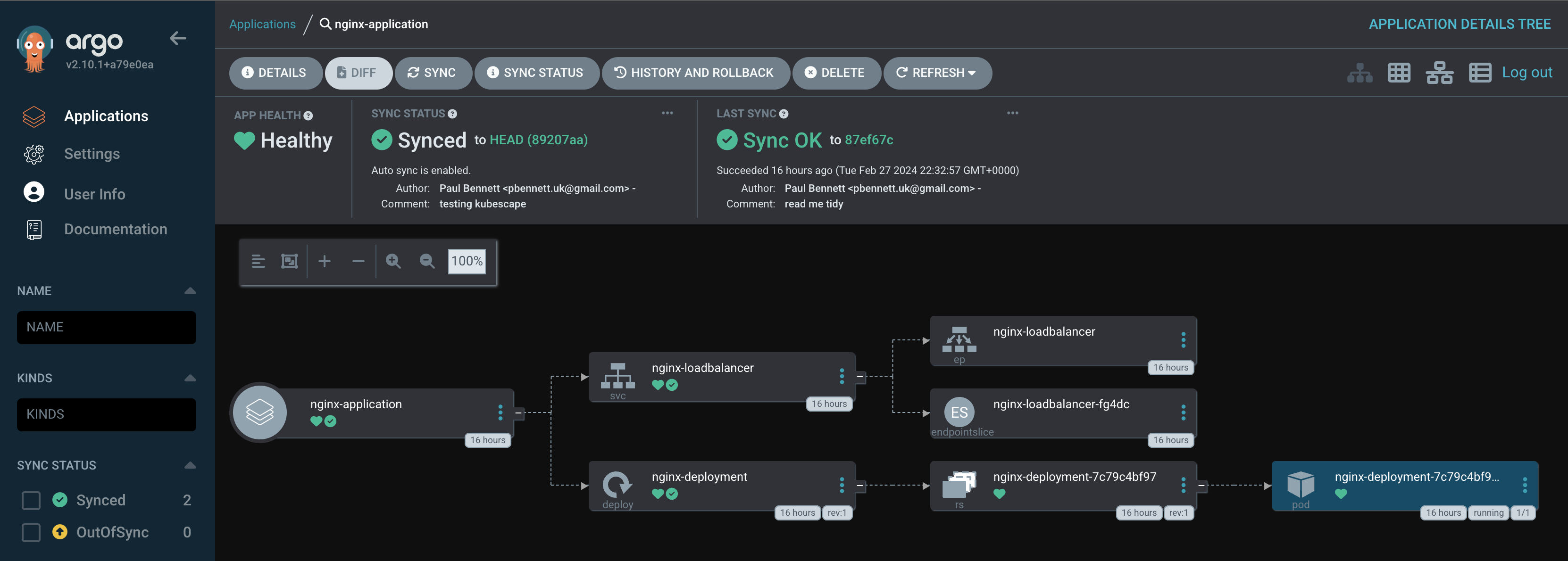

Now in ArgoCD you can see it be deployed once commited into the repo

We can see that the registry application has deployed the Nginx application, if we head into that application we can see all the pods within that application / namespace.

Now all that is needed to deploy more apps is to create a new Application manifest in the registry directory that will point to the applications apps/appname directory to deploy the needed manifest files.

LOVELY!! <3
